Main Feature

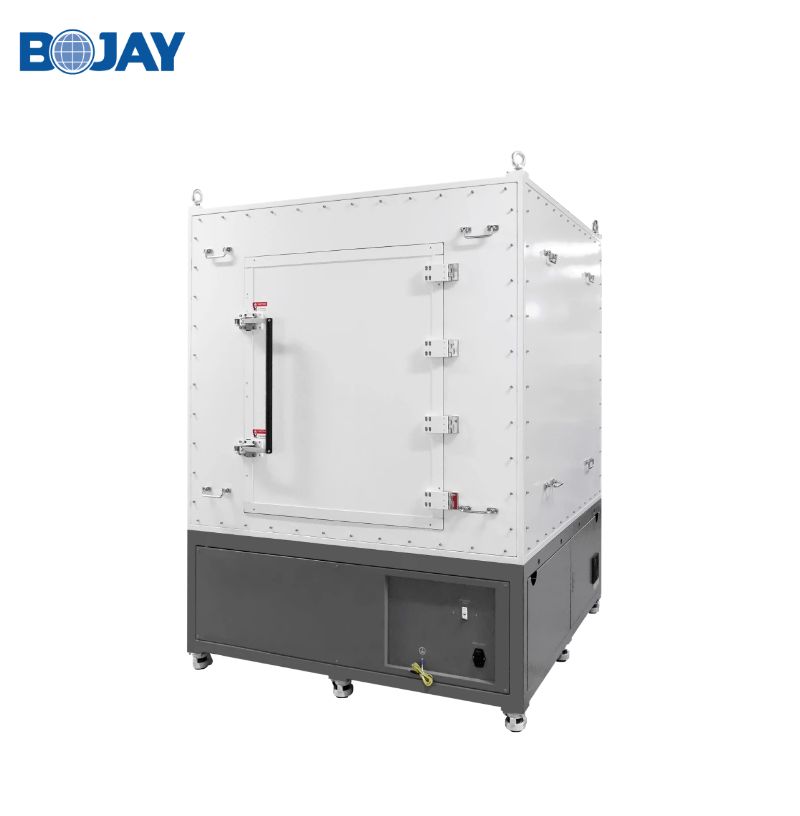

● BJ-8508 mmWave Compact Anechoic Chamber is designed for 5G Direct Far Field Antenna Test;
● RF isolation from 18GHz to 44GHz;
● Shielding effectiveness: >70 dB from 18 GHz to 44 GHz;
● Absorber reflectivity: <-30dB in FR2.
Mechanical Specification
Outer Dimension | 1450 (W) * 1450 (D) *1950 (H) mm |
Inner Dimension | 1300 (W) * 1300 (D) * 1080 (H) mm |
Front Door Dimension | 780 (W) * 900 (H) mm |
Service Door Dimension | 780 (W) * 900 (H) mm |
Product Net Weight | approx. 600kg |
Gross Weight | approx.700kg |
Electrical Specification
Power Consumption | 800W |
Input Voltage | 100~240V AC 50Hz |
