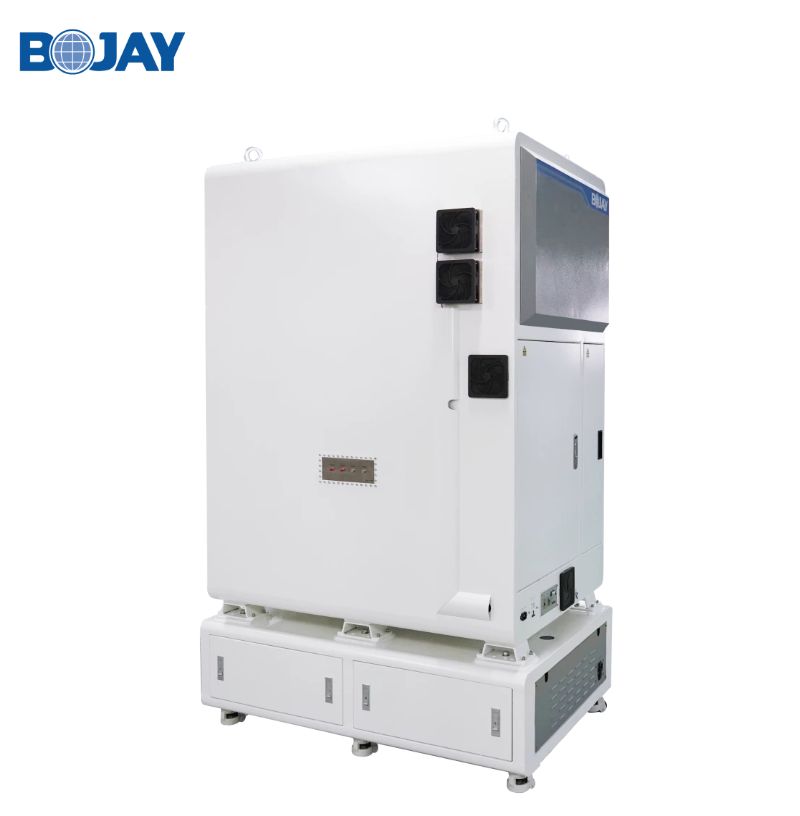

CATR&DFF 2 in 1 Solution | BJ-8856 mmWave Compact Anechoic Chamber

● Combing with a high accuracy 2-axis positioner , the system is able to provide fast and accurate antenna measurement for various size DUTs;

● The high precision reflector; provides a large quiet zone of 200 mm for a black box testing

● For automotive radar simulation test;

● The system is capable of switching between indirect far field and direct far field.

● For laboratory testing

Main Feature

● For 5G Far Field Antenna Testing;

● RF isolation from 700MHz to 90GHz;

● Absorber reflectivity: <-30 dB from 24 GHz to 50GHz;

● Fast measurement capability via TTL hardware signal trigger;

● Optional thermal enclosure is available for Extreme Condition from -40 to 100℃.

Machanical Specification

Inner Dimension	990(W)736(L)1250(H)mm
Outer Dimension(without base)	1240(W)1010 (L)1610(H)mm
Outer Dimension(with base)	1240(W)1010 (L)2000(H)mm
Base Outer Dimension	1225(W)900(L)425(H)mm
Operation Door Dimension	760(W)*760(H)mm
Product Net Weight	approx.350kg
Gross Weight	approx.450kg

Eletrical Specification

Power Consumption	900W
Input Voltage	100~120/200~240VAC 50/60Hz
Positioner Control Interface	USB Type A Female/DB9 Female for RS232/RJ45

Positioner Specification
