● Support 4 channel input at the same time,16 channels RF output can be expanded;
● RF connector adopts SMA to improve the reliability of the module；
● Expand the port of the comprehensive tester to improve the utilization rate of the instrument；
● 1 billion timesservice life ,500 times that of traditional mechanical switches.

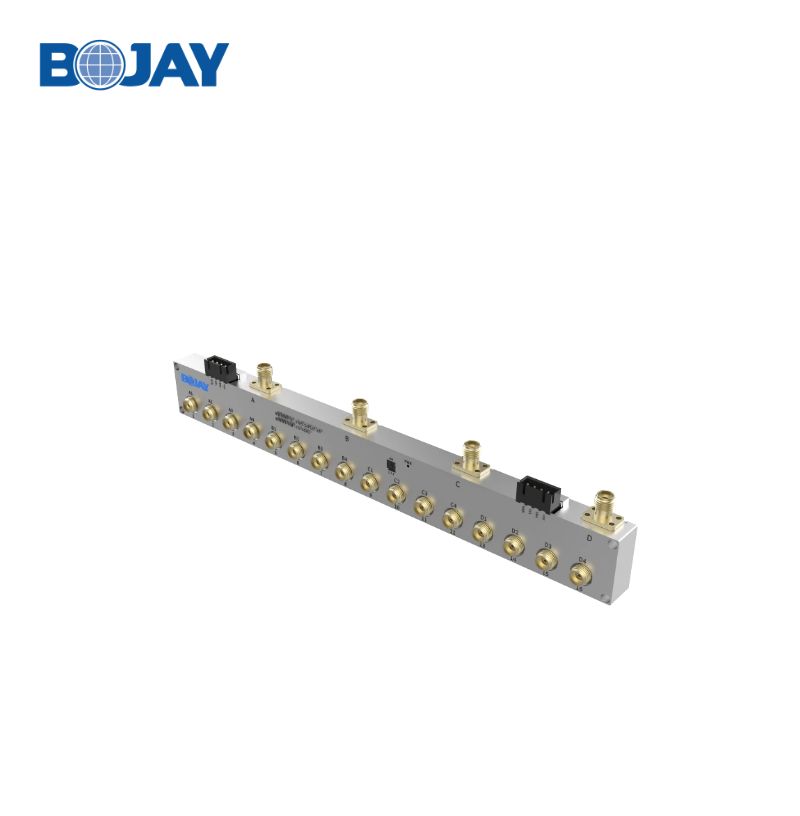

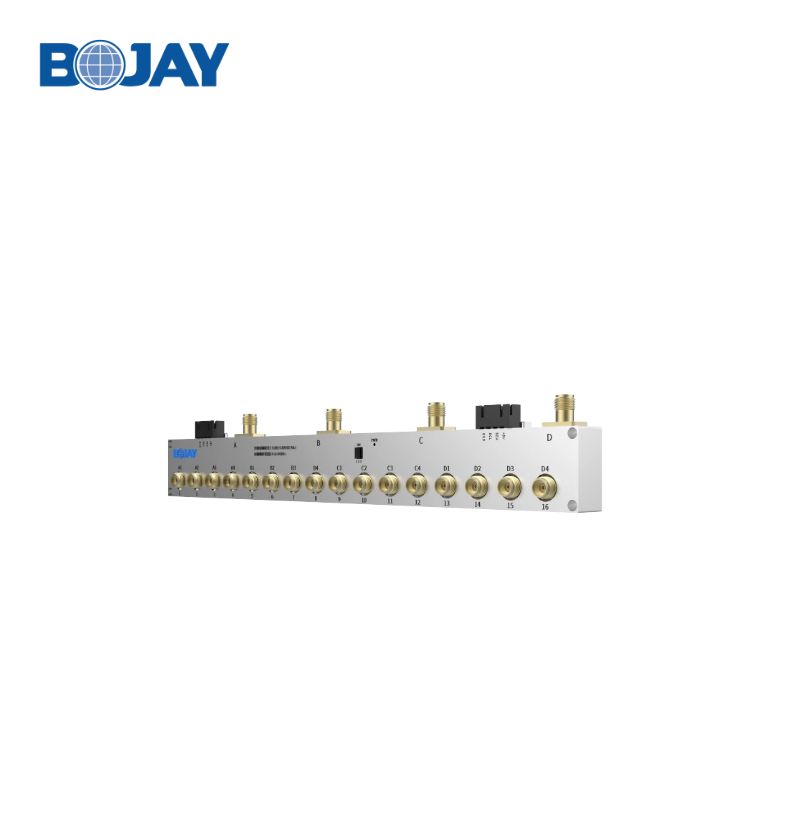

Items | BJRS-S4P16T-AA |
Operating frequency range | 0.6~8GHz |
Switch type | Absorption, solid |
Channel insertion loss | ≤2dB@0.6~8GHz |
VSWR（1 is the common end and 2 is the antenna end） | VSWR <1.2 |
Amplitude consistency of each channel | ≤0.5dB |
Maximum input power | ≤2W (33dBm) |
Switching Time | ≤1ms |
Communication interface | I2C |
Power supply | 3V3 |
RF connector | SMA |
Module isolation | >60dB |
Working temperature | -10℃~60℃ |
Others | Support Hot plugging and power protection |
Dimension | 208mm*33.5mm*14.4mm |
