Views | Part Number | Feature Specifications | Performance Characteristics |
| SP4T * 4 | RF Path：SP4T*4 Frequence：DC~8GHz Connectors：SMP Max power rating：2W Option control I/O：TTL、IIC DCINPUT：3.3V | Insertion Loss: 0.1~8GHz 6dB Max Isolaton: 0.1~8GHz 30dB Min VSWR: 0.1~8GHz 1.25 Max |

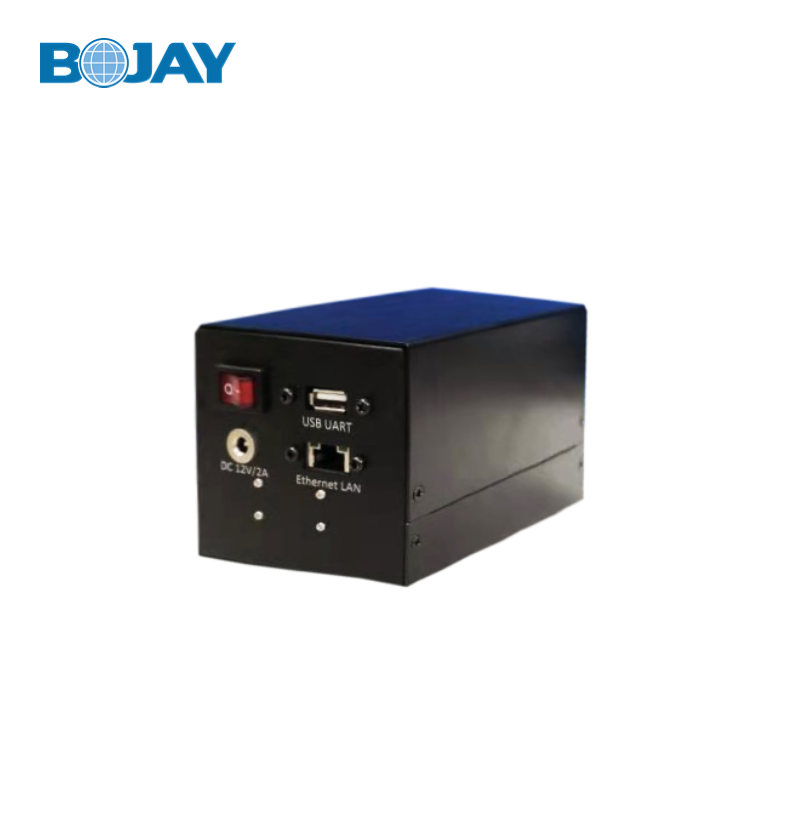

| SP6T Switch(40GHz) | RF Path: SP6Tx1 Frequency ：DC-40GHz Connectors: 2.92mm(F) Max power rating: 1 watt average into 50Ω loads Optional control I/O: Ethernet LAN, USB UART, RS232 DC INPUT: 12V/2 | Insertion Loss: DC-18GHz 0.6 dB Max 18-26.5GHz 0.8 dB Max 26.5-40GHz 1.1 dB Max Isolaton: DC-18GHz 70 dB Min 18-26.5GHz 60 dB Min 26.5-40GHz 60 dB Min VSWR: DC-18GHz 1.60 Max 18-26.5GHz 1.70 Max 26.5-40GHz 1.95 Max |

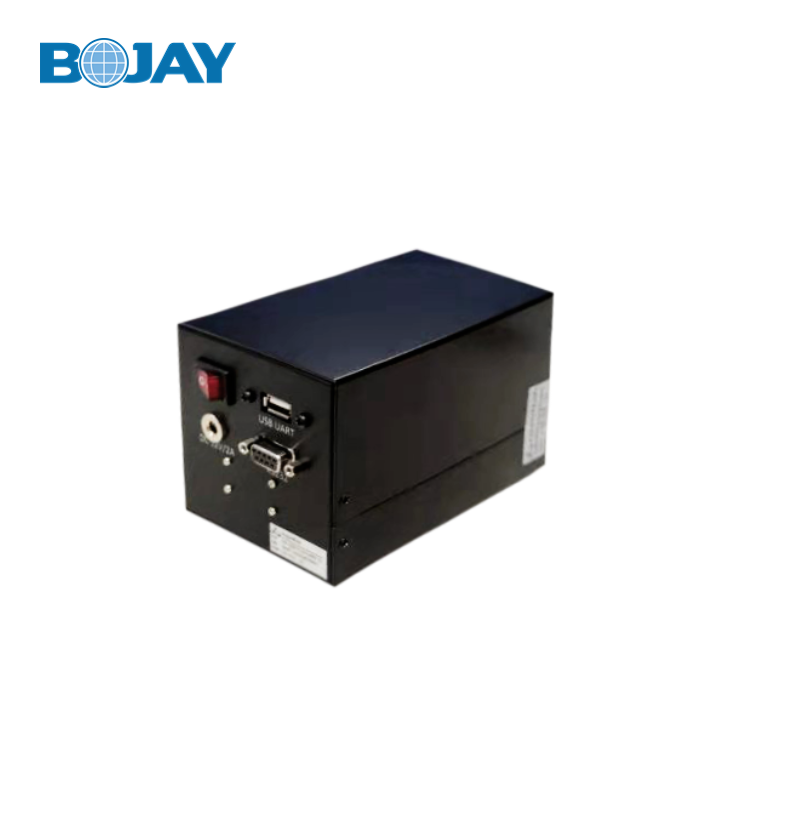

| SP6T Switch(50GHz) | RF Path: SP6Tx1 Frequency ：DC-50GHz Connectors: 2.4mm(F) Max power rating: 1 watt average into 50Ω loads Optional control I/O: USB UART,RS232, Ethernet LAN DC INPUT: 12V/2 | Insertion Loss: DC-18GHz 0.5 dB Max 18-26.5GHz 0.7 dB Max 26.5-40GHz 0.9 dB Max 40-50GHz 1.5 dB Max Isolaton: DC-18GHz 60 dB Max 18-26.5GHz 55 dB Max 26.5-40GHz 50 dB Max 40-50GHz 50 dB Max VSWR: DC-18GHz 1.5 Max 18-26.5GHz 1.7 Max 26.5-40GHz 1.9 Max 40-50GHz 2.2 Max |
