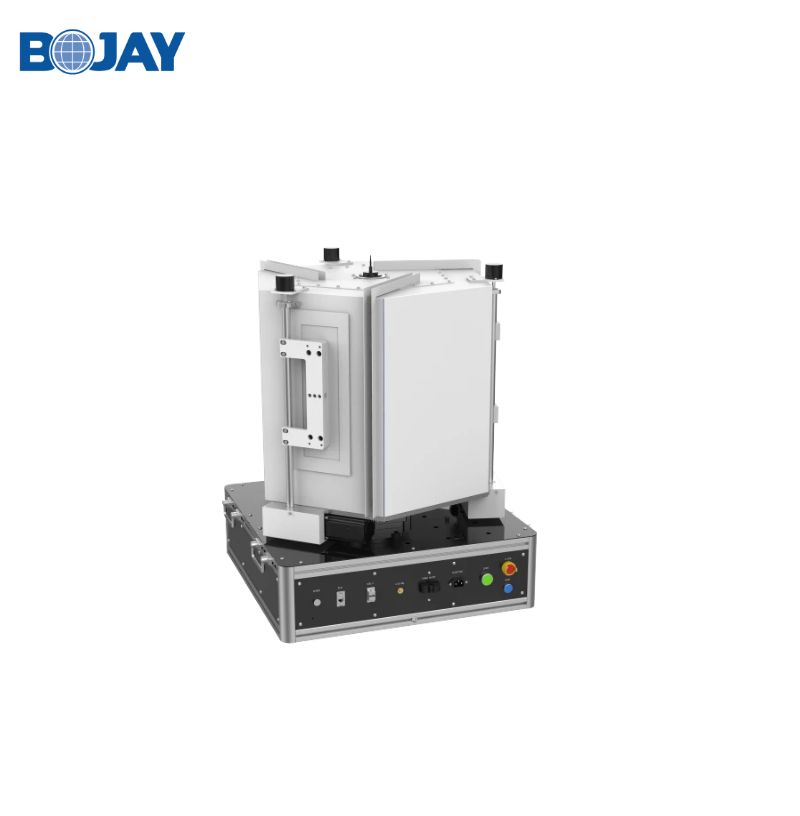

Main Feature
● The chamber has high RF isolation from 700MHz to 60GHz;
● Isolation: >50db at FR1 and FR2;
● For laboratory testing.
Mechanical Specification
Chamber Dimension | 603.6(L)* 523.9(W)*550(H)mm |
Base Dimension | 624(L)* 624(W)*182(H)mm |
Table Dimension | 750(L)* 750(W)*650(H)mm |
Main Structure | cold rolled sheet |
Operation Door Dimension | 225(W）*425(H)mm |
Power consumption | 400W |
Structure | NA |
Electrical Specification
Input Voltage | 100~120/200~240V AC 50/60Hz |
Positioner Control Interface | USB Type A Female/DB9 Female for RS232/RJ45 |
Positioner specification
Theta axis rotation | Any Angle |
Phi axis rotation | Any Angle |
Supported DUT Size | All series of Apple phones (customizable) |
Supported DUT Weight | Max 1000g |
